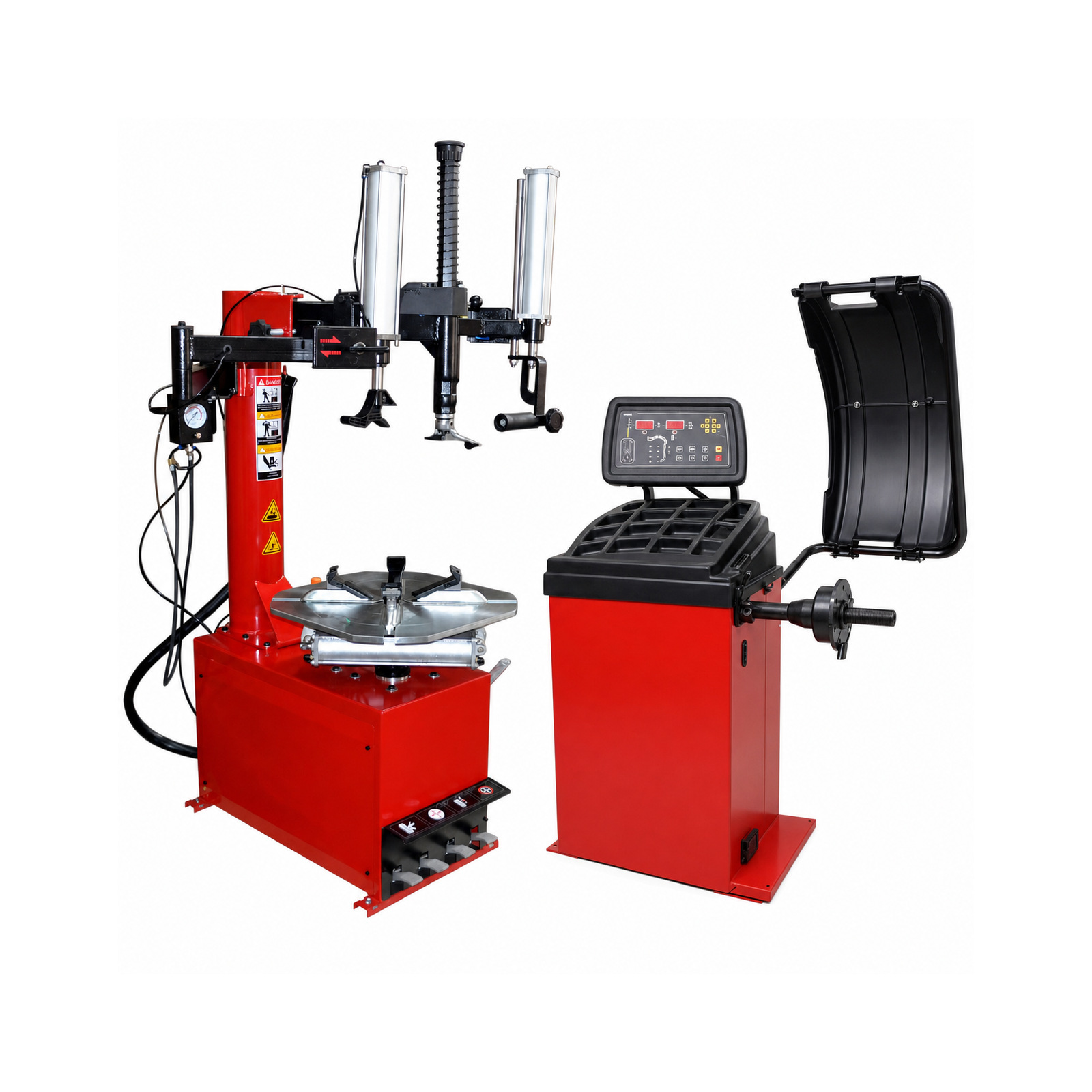

KATOOL KT-T830 Tire Changer & KT-B700 Wheel Balancer Combo
Discover the KATOOL KT-T830 tire changer and KT-B700 wheel balancer combo for practical wheel service, tire changing and balancing support.
Component 1: Car Tire Changer KT-T830
Key Specifications
- Max Wheel Diameter: 41"/1040mm
- Max Wheel Width: 15"/380mm
- Outside Clamp: 12"-22"
- Inside Clamp: 14"-24"
- Power Supply: 120V 1PH
- Motor Power: 2.0HP/1.5KW
- Rotation Speed: 6.8r/min
- Air Pressure: 0.8-1.0Mpa(116-145psi)
- Net weight: 240KG
Product Features
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim.
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim.
-
- ith high quality spade cover, effective prevent damage rim.
- Pull type pedal control system, convenience for changing and maintenance.
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system.
- For North America region used 120V/1ph/
- Double side
-
- φ186mm
-
Applications
Inflation gauge with pedal control 2.0HP
Component 2: Car Wheel Balancer KT-B700
Key Specifications
- Wheel Width: 3"-12"
- Balancing Speed: 180rpm
- Power Supply: 120V 1PH
- Motor Power: 0.25KW
- Balancing Accuracy: ±1g
- Measuring Time: 7S
Product Features
- The body use 3mm thickness steel, high strength, solid welding, few vibration.
- All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision.
- Top level motor and pure copper winding, more power, fast heat dissipation,low defect rate and longer using life.
- The φ36mm shaft thread is by quenching treatment, high strength.
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
- The computer board adopt advanced welding technology, moistureproof, dustproof and anti-static electricity, more longer life.
- Various balance mode, according different rim for different balance mode, make the balance effect more precision.
- Built-in fault diagnosis and self calibration program that double side calibration, No memory parameters,operation more easy.
- Unit selection(Ounce/Gram, MM/Inch).
- High quality integration power board, working stable and reliable.
- Wheel guard for optional.
- Longer shaft for more width wheels
Warranty
12 Months All Parts Warranty For Tire Changer KT-T830.
15 Months All Parts Warranty For Wheel Balancer
Shipping Notes
- All items are shipped by freight shipping ONLY within the lower 48 states.
- Shipping to
- MOST
- business addresses. Some areas may charge extra for shipping due to our carriers do not service the lanes and the carriers charge more shipping fees.
- Residential Delivery, Farmland, Construction Site and Lift Gate Service will be charged extra by the shipping carrier.
- Please include the business name, contact name & phone number upon checkout so that we can process your order. We cannot ship your order until we receive this info
- THE BUYER IS ALWAYS RESPONSIBLE FOR UNLOADING THE PRODUCT FROM THE TRUCK.
- Forklift or something similar
Product Support
For product details, compatibility questions, dealer pricing and availability, please visit our Tire Changer and Wheel Balancer Combos page or contact our team.
