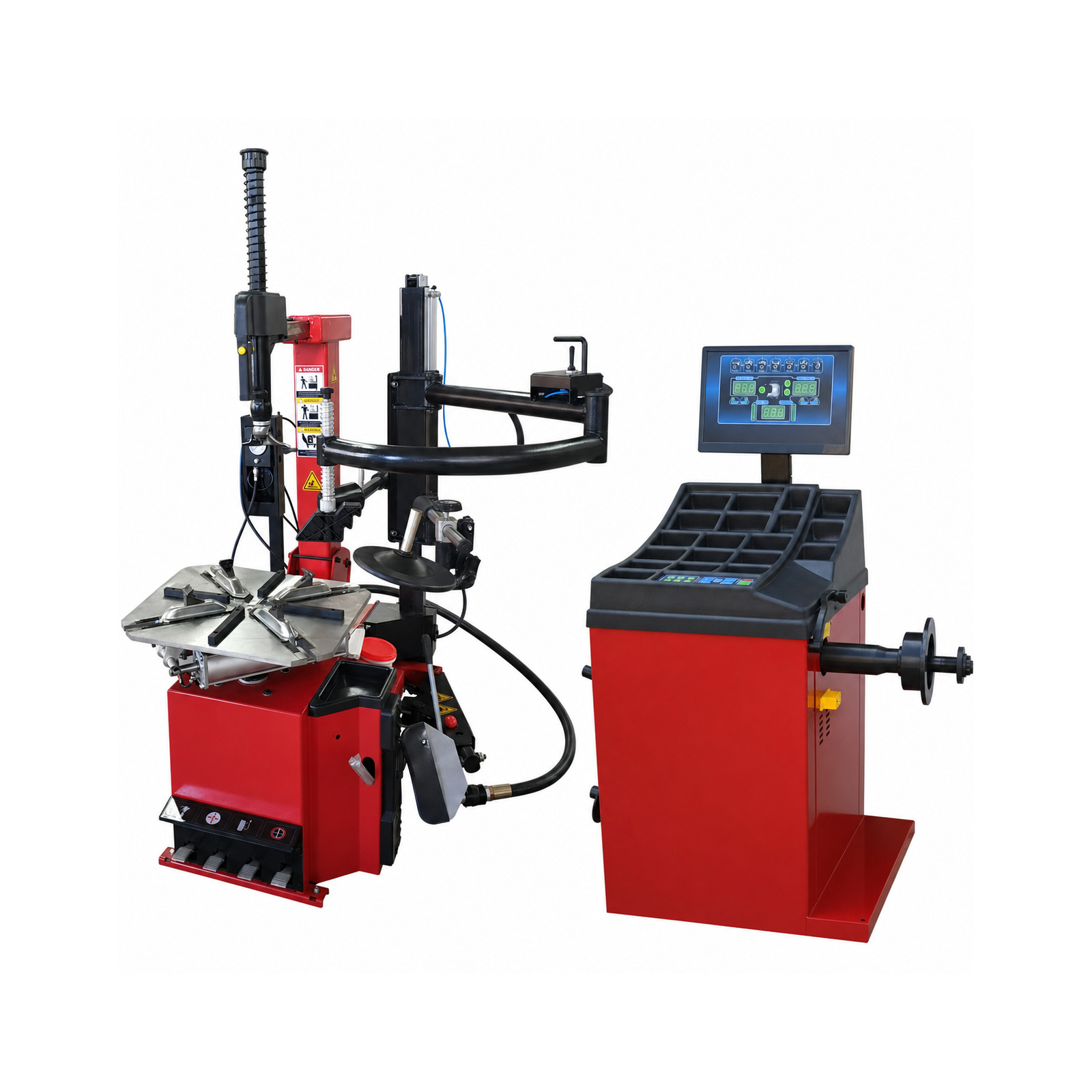

Autokato KT-T850 Tire Changer & KT-B760 Wheel Balancer Combo
View the Autokato KT-T850 tire changer and KT-B760 wheel balancer combo for efficient tire changing and balancing service.
Component 1: Car Tire Changer KT-T850
Key Specifications
- Max Wheel Diameter: 47"/1200mm
- Max Wheel Width: 15"/380mm
- Outside Clamp: 14"-26"
- Inside Clamp: 16"-28"
- Power Supply: 110V 1PH
- Motor Power: 2.0HP/1.5KW
- Rotation Speed: 6.8r/min
- Air Pressure: 0.8-1.0Mpa(116-145psi)
- Net weight: 340KG / 750 lbs
Product Features
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim.
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle,and take with plastic cover for protect rim.
-
- Pull type pedal control system, convenience for changing and maintenance.
- Pull type pedal control system, convenience for changing and maintenance.
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system.
- For North America region used 110V / 1ph /
- Assist arms
-
- φ200mm
Applications
With high quality spade cover, effective prevent damage rim. 2.0HP motor,more strong power and high efficiency working
Component 2: Car Wheel Balancer KT-B760
Key Specifications
- Wheel Width: 3"-12"
- Balancing Speed: 180rpm
- Power Supply: 120V 1PH
- Motor Power: 0.25KW
- Balancing Accuracy: ±1g
- Measuring Time: 7S
Product Features
- Automatic measurement ruler for auto input A and D values.
- The body use 3mm thickness steel, high strength, solid welding, few vibration.
- All-in-one pressure sensor support design, bottom board thickness 8mm,side board thickness 8mm, that insure the sensor working stable and high precision.
- Top level motor and pure copper winding, more power, fast heat dissipation,low defect rate and longer using life.
- The φ36mm shaft thread is by quenching treatment, high strength.
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
- The computer board adopt advanced welding technology, moistureproof, dustproof and anti-static electricity, more longer life.
- Various balance mode, according different rim for different balance mode, make the balance effect more precision.
- Built-in fault diagnosis and self calibration program that double side calibration ,No memory parameters,operation more easy.
- Unit selection(Ounce/Gram, MM/Inch).
- High quality integration power board, working stable and reliable.
- Wheel guard for optional.
- Longer shaft for more width wheels
Warranty
12 Months All Parts Warranty For Tire Changer KT-T850.
12 Months All Parts Warranty For Wheel Balancer
Shipping Notes
- Freight shipping ONLY within the lower 48 states.
- Free shipping to
- commerial addresses. Remote areas maybe charge extra for shipping. Need confirm before delivery.
- Shipping carrier could charge extra to residential Delivery.
- THE BUYER should be RESPONSIBLE FOR UNLOADING FROM THE TRUCK.
- Customer should consider
- Forklift
- and unloading dock service.
Product Support
For product details, compatibility questions, dealer pricing and availability, please visit our Tire Changer and Wheel Balancer Combos page or contact our team.
