Description

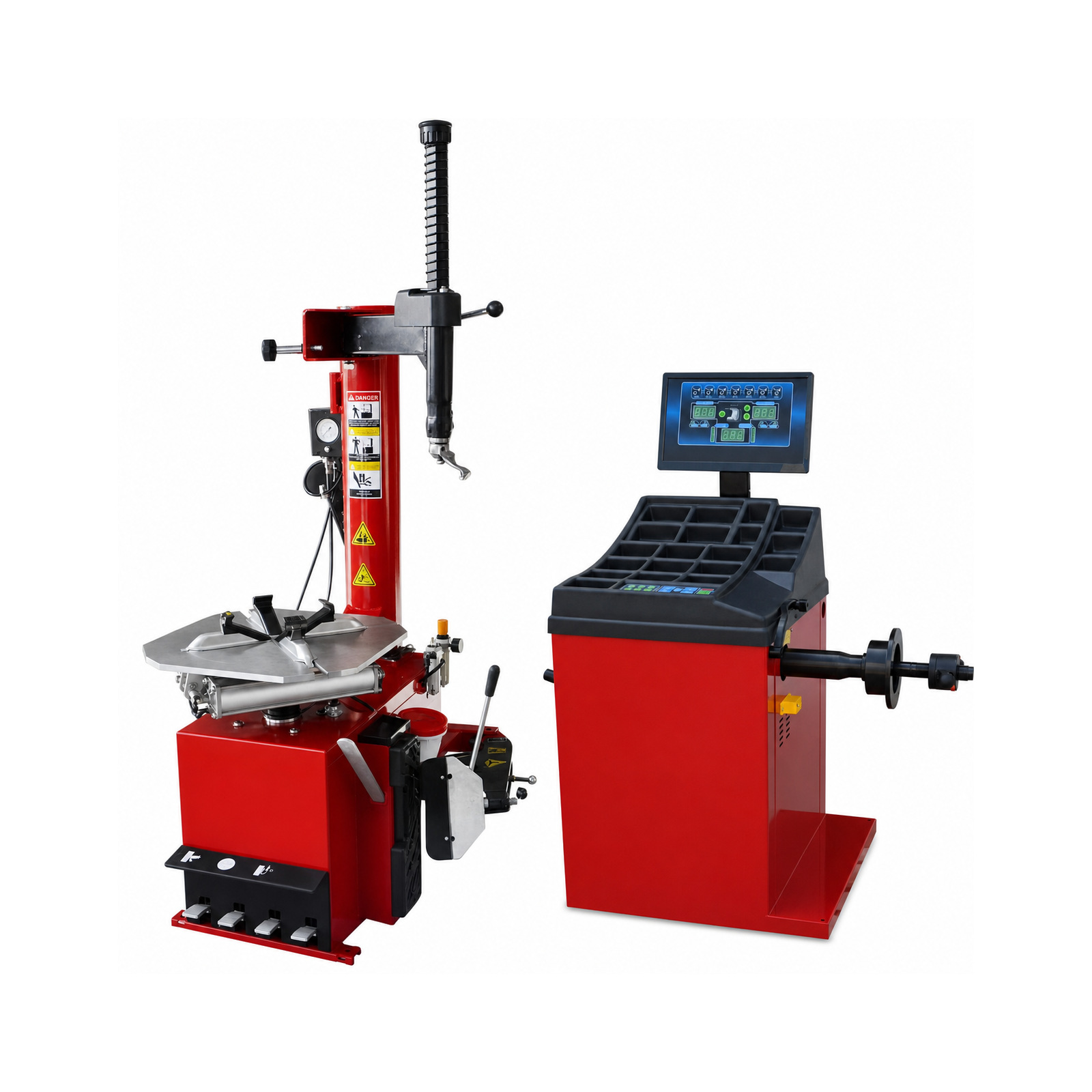

KATOOL KT-T800 Tire Changer & KT-B760 Wheel Balancer Combo
Browse the KATOOL KT-T800 tire changer and KT-B760 wheel balancer combo for practical wheel changing and balancing operations.
Component 1: Car Tire Changer KT-T800
Key Specifications
- Max Wheel Diameter: 41"/1040mm
- Max Wheel Width: 15"/380mm
- Outside Clamp: 12"-20"
- Inside Clamp: 14"-24"
- Power Supply: 110V 1PH
- Motor Power: 2.0HP/1.5KW
- Rotation Speed: 6.8r/min
- Air Pressure: 0.8-1.0Mpa(116-145psi)
- Net weight: 186KG
Product Features
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim.
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle,and take with plastic cover for protect rim.
- Inflation gauge with pedal control.
- With high quality spade cover, effective prevent damage rim.
- Pull type pedal control system, convenience for changing and maintenance.
- Top level motor and pure copper winding, fast heat dissipation,low defect rate and longer using life.
- With high quality filter, reliable drop oil, effective filter pressure air,and make more longer using life for pneumatic system.
- For North America region used 110V/1ph/2.0HP motor,more strong power and high efficiency working.
- Closed body for protect inside parts well.
Component 2: Car Wheel Balancer KT-B760
Key Specifications
- Wheel Width: 3"-12"
- Balancing Speed: 180rpm
- Power Supply: 110V 1PH
- Motor Power: 0.25KW
- Balancing Accuracy: ±1g
- Measuring Time: 7S
Product Features
- Automatic measurement ruler for auto input A and D values.
- The body use 3mm thickness steel, high strength, solid welding, few vibration.
- All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision.
- Top level motor and pure copper winding, more power, fast heat dissipation,low defect rate and longer using life.
- The φ36mm shaft thread is by quenching treatment, high strength.
- Top level motor and pure copper winding, fast heat dissipation,low defect rate and longer using life.
- The computer board adopt advanced welding technology, moistureproof,dustproof and anti-static electricity, more longer life.
- Various balance mode, according different rim for different balance mode,make the balance effect more precision.
- Built-in fault diagnosis and self calibration program that double side calibration,No memory parameters,operation more easy.
- Unit selection(Ounce/Gram, MM/Inch).
- High quality integration power board, working stable and reliable.
- Wheel guard for optional.
- Longer shaft for more width wheels.
Applications
This equipment is suitable for repair shops, service bays, tire centers and professional workshop environments that need reliable daily garage equipment support.
Warranty
12 Months All Parts Warranty For Tire Changer KT-T800.
12 Months All Parts Warranty For Wheel Balancer
Shipping Notes
- All items are shipped by freight shipping ONLY within the lower 48 states.
- Free shipping to
- commerial addresses. Remote areas maybe charge extra for shipping. Need confirm before delivery.
- Shipping carrier could charge extra to residential Delivery.
- THE BUYER should be RESPONSIBLE FOR UNLOADING FROM THE TRUCK.
- Customer should consider
- Forklift
- and unloading dock service.
Product Support
For product details, compatibility questions, dealer pricing and availability, please visit our Tire Changer and Wheel Balancer Combos page or contact our team.
